Agriculture Farm Watering Laser Spray Rain Hose Irrigation Kits for 10 Hectares
type: Other Watering & Irrigation
place of origin: Shandong, China
brand name: Yibiyuan
model number: 22 28 32mm
material: Plastic
Product name: spray Rain pipe
Application: Agricultural Farmland Irrigation System
Usage: Water-saving Irrigation System
Feature: Easy Installation
Function: Drip Irrigation Work
Keyword: Irrigation Equipment
Color: Black, Black
Length: 500m 1000m 2000m
Advantage: uniform irrigation, low cost and low pressure
spray distance: 4m
Product Description
Rain Hose Irrigation System
Irrigation Rain Hose Micro Spray Water Hose Sprinkler Pipe With Holes
Sprinkler Hose with Holes
1. Product description:
Spraying holes on the sprinkler hoses are precisely puched with laser. Currently, 3-hole, 5-hole and 7-hole per set are available,
varying with hose diameter. Depending on the water pressure and hose diameter, sprinkler hoses with holes can water about 2~12
meters wide along the hose. Also, you can easily adjust the spray radius by turning down the water pressure.
1. Product description:
Spraying holes on the sprinkler hoses are precisely puched with laser. Currently, 3-hole, 5-hole and 7-hole per set are available,
varying with hose diameter. Depending on the water pressure and hose diameter, sprinkler hoses with holes can water about 2~12
meters wide along the hose. Also, you can easily adjust the spray radius by turning down the water pressure.
|
Width
(mm)
|
Dia
(mm)
|
Wall thick
(mm)
|
Roll Weight
(kg)
|
Roll Length
(m)
|
||
|
35
|
22
|
0.18
|
10.5
|
1000
|
||
|
45
|
28
|
0.18
|
13.5
|
1000
|
||
|
50
|
32
|
0.20
|
20
|
1000
|
||
|
65
|
40
|
0.23
|
5
|
200*5
|
||
|
80
|
50
|
0.30
|
5
|
100*4
|
||
|
100
|
63
|
0.30
|
6
|
100*3
|
||
|
Customised Design
|
0.40
|
MOQ 10000 Meters
|
||||

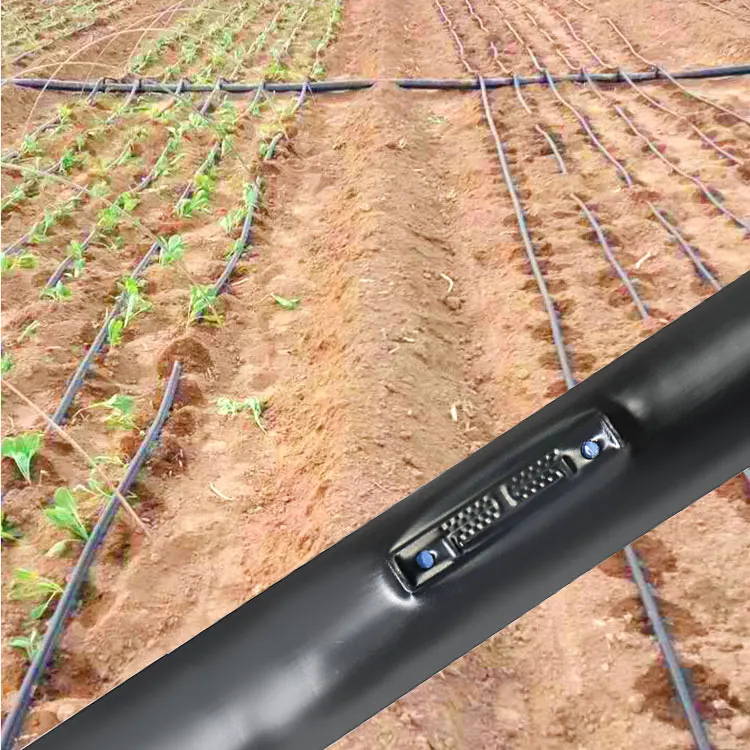

Excellent emission uniformity and anti-clogging property.
100% PE raw material ,anti-UV,anti-corrosion,and durability .
Extruded with dripper inside,light weight and packed by roll,good for transportation.
Suitable for large farm application.
Precision performance Cv ≤ 5%.Drip tape can be installed easily either above or below ground. It is designed for use in vegetable gardens, narrow rows of vegetation, and for row crops. Most often, a vegetable garden or vegetable crops are planted in parallel rows. This makes the layout of a drip tape very easy.
100% PE raw material ,anti-UV,anti-corrosion,and durability .
Extruded with dripper inside,light weight and packed by roll,good for transportation.
Suitable for large farm application.
Precision performance Cv ≤ 5%.Drip tape can be installed easily either above or below ground. It is designed for use in vegetable gardens, narrow rows of vegetation, and for row crops. Most often, a vegetable garden or vegetable crops are planted in parallel rows. This makes the layout of a drip tape very easy.

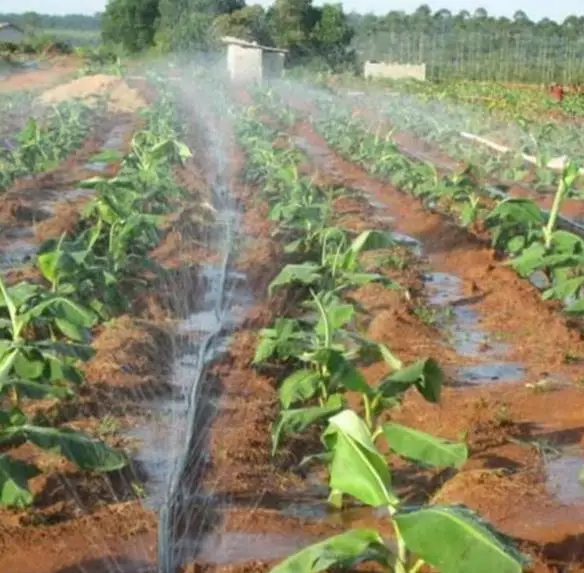

When irrigation by PE micro spray tape, it is similar to fin rain to moisten the crops. Spraying water with litter impact.And even without harming the crops. Especially, it can significantly reduce the humidity in the greenhouse and reduce the disease of crops.
It is especially suitable for the use of garden plants and filed crops.
Option one for large coils: Mount the drip tape spool on a stand at the end of the row, tie the stand to the ground and pull the drip tape close to the ground.
Step 1: Install a drip zone or control valve that includes remote control valve or battery operated controller, filter, pressure regulator, and pipe adapter to PVC or poly tubing. We highly recommend using a 10 to 15 PSI pressure regulator.
Step 2: Lay out the main lateral or supply line, PVC pipe, or poly tubing perpendicular to the rows.
Step 3: Place the drip tape at the layout or spacing selected (see the two options suggested above).
Spacing suggestions: Lay out the drip tape at the center of the vegetable row with one line per row, or one line between every two rows if the bed is less than 2′ wide.
It is especially suitable for the use of garden plants and filed crops.
Option one for large coils: Mount the drip tape spool on a stand at the end of the row, tie the stand to the ground and pull the drip tape close to the ground.
Step 1: Install a drip zone or control valve that includes remote control valve or battery operated controller, filter, pressure regulator, and pipe adapter to PVC or poly tubing. We highly recommend using a 10 to 15 PSI pressure regulator.
Step 2: Lay out the main lateral or supply line, PVC pipe, or poly tubing perpendicular to the rows.
Step 3: Place the drip tape at the layout or spacing selected (see the two options suggested above).
Spacing suggestions: Lay out the drip tape at the center of the vegetable row with one line per row, or one line between every two rows if the bed is less than 2′ wide.
Related Products
Our Advantages
Company Profile
FAQ
Q: Are you a manufacturer?
A: Yes, Yibiyuan is a leading manufacturer of irrigation and hydroponics products located in China.
Q: What is your minimum order quantity?
A: The MOQ for sprinkler hose is 1000 meters.
Q: What are your payment terms?
A: Generally, we accept T/T payment, 30% in advance and the rest before shipment. Please contact your sale representatives for details.
Q: What’s the lead time of the sprinkler hose with holes?
A: The lead time is about 7~15 days.
Q: I haven’t done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: What’s your shipment terms?
A: We generally go FOB Qingdao or Ex Works. You can talk to your sales rep for other options.
Q: Can you send me some samples before the mass order?
A: Yes, we’re glad to offer you some sprinkler hose samples, though you need to cover the shipping cost.
A: Yes, Yibiyuan is a leading manufacturer of irrigation and hydroponics products located in China.
Q: What is your minimum order quantity?
A: The MOQ for sprinkler hose is 1000 meters.
Q: What are your payment terms?
A: Generally, we accept T/T payment, 30% in advance and the rest before shipment. Please contact your sale representatives for details.
Q: What’s the lead time of the sprinkler hose with holes?
A: The lead time is about 7~15 days.
Q: I haven’t done business with you before, how can I trust your company?
A: You can watch the video introduction verified by the world-leading inspection company Intertek. Or assign your agent to visit our factory personally.
Q: What’s your shipment terms?
A: We generally go FOB Qingdao or Ex Works. You can talk to your sales rep for other options.
Q: Can you send me some samples before the mass order?
A: Yes, we’re glad to offer you some sprinkler hose samples, though you need to cover the shipping cost.
